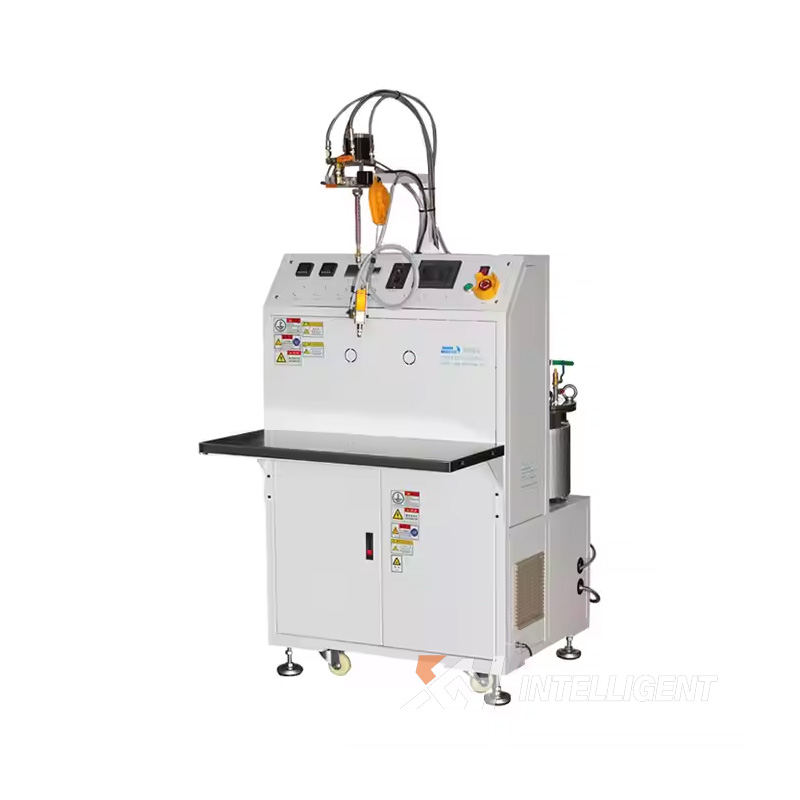

This Semi-automatic Vacuum AB Glue Potting Machine adopts high precision metering pump to control the amount of glue, which has the advantages of wear resistance, corrosion resistance, not afraid of glue with glue material, precise glue proportion, and so on;
The ratio of 1:1 to 100:1 can be adjusted, suitable for polyurethane, silicone, AB epoxy resin, and other types of AB glue, so as to meet your needs for various gluing;
Product Parameters
The glue dispensing part is easy to operate, you just need to pour AB glue into the corresponding bucket, and then set the program in the PLC touch screen, press the start button, the machine can automatically fill the glue, each product filling, the machine will automatically match the amount, effectively save glue;
According to the properties of glue, the barrel can be equipped with mixing devices to prevent precipitation, can also be equipped with a constant temperature device, and can also add liquid level induction devices, when the glue is lower than the level of automatic alarm, remind to add glue;
Convenient cleaning. A glue and B glue are stored separately, the mixing part of AB glue only has the mixing pipe of the glue outlet, so the cleaning part only has the mixing pipe, and the other parts do not need to be cleaned. If you go off work or stop for a period of time, you only need to remove the mixing pipe and soak it in the cleaning agent immediately.
| Models | XY-SY920 |
| Operation mode | Single action,linkage,automatic |
| Proportioning accuracy | ±1%-3% |
| Ejection accuracy | ±2% |
| Mixing ratio | 1:1-100:1 |
| Glue dispensing speed | 0.1~50G/5(set according to customer product conditions) |
| Pressure barrel | 2 stainless steel vacuum storage barrels and 1 cleaning barrel (the volume can becustomized according to customer requirements) |
| Mixed mode | Dynamic /static mixing |
| Operating system | PLC+PLC+touch screen |
| Operation mode | Foot switch+start switch |
| Measurement mode | 2 sets of high-precision metering pumps of independent brand (gear pump and screw pump can be used selectively) |
| Wear resistant material | The screw pump selects wear-resistant materials according to the properties of customers’glue |
| Pipeline circulation system | provided |
| Anti curing function | provided |
| Mixing device | Double layer mixing /single layer mixing |
| Input power | AC 220V 50-60Hz |
| Operating humidity | 20-90% no condensation |
| Overall dimension | around W800*L800*H1350mm |
| Weight | around 150kg |
