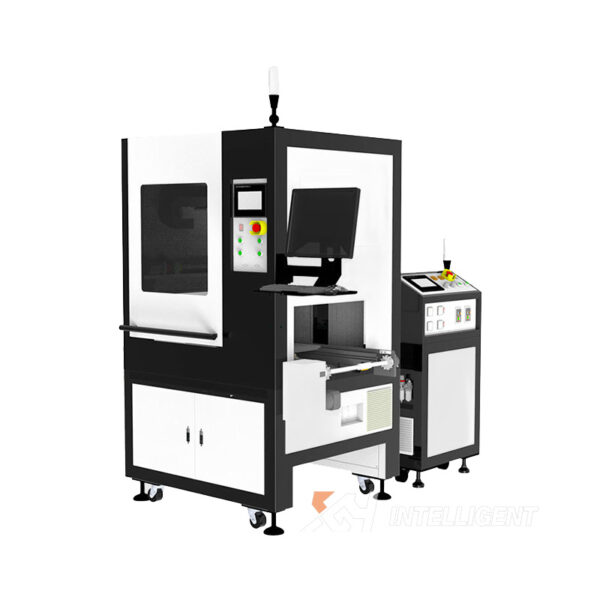

Online glue potting machine is through the servo motor or stepping motor control metering pump, PCL operating system control precision glue out of the way to achieve 1:1 ~ 100:1 ratio of glue for mixing and filling into the product. Online glue filling machine it self with automatic assembly line, three-axis potting platform to achieve automatic sensing to the inflow of products, automatic product potting.
Product Parameters
| Models | XY-SY540 |
| Working area | X500*Y400*Y120mm |
| Maximum load | X/Y:20kg;Z:8KG |
| Moving speed | X/Y:≤800mm/s; Z:≤300mm/s |
| Motion accuracy | ±0.01mm |
| Dispensing accuracy | ±0.02mm |
| Glue ratio | 1:1~100:1 |
| Vision system | Optiona |
| Pipeline width | 100~350mm |
| Transmission mode | Timing belt/speed doubling chain/plug-in chain (optional) |
| Inooming induction | Optical fiber /photoelectnic |
| Transmission mode | Servo motor +ball screw |
| Measurement mode | Metering pump |
| Mixed mode | Dynamic mixing /static mixing (optional) |
| Glue storage mode | high precision vacuum pressure barrels +1 cleaning barrel |
| Operation mode | With vision:PC without vision:teaching pendant |
| Anti-curing function | provided |
| Input power | AC220V 50-60Hz |
| Overall dimension | around W1300*L900*H160mm |
| Weight | around 450kg |
