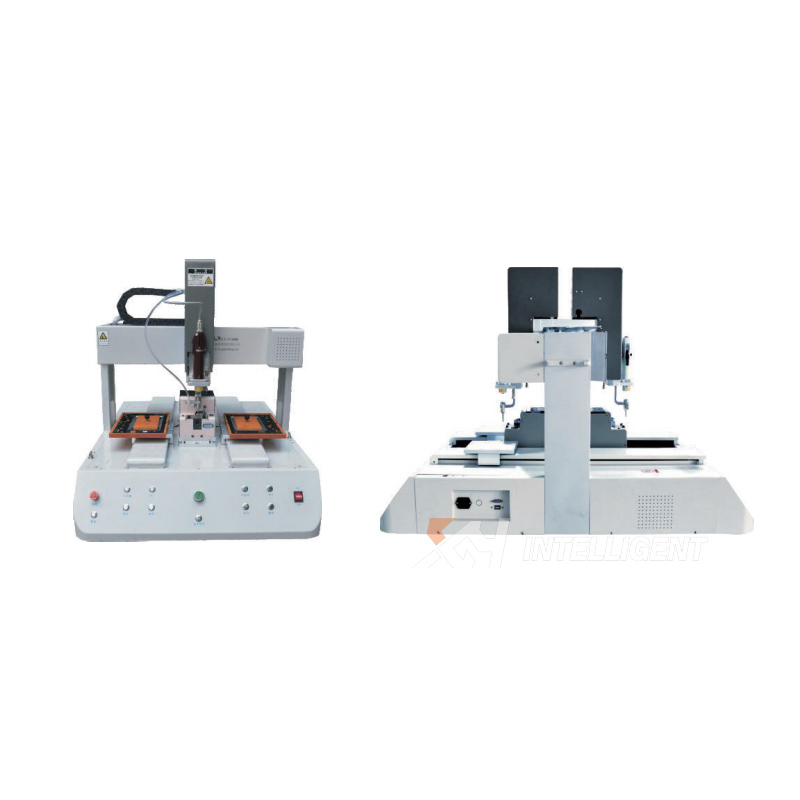

The 6-axis desktop automatic screw driving machine features dual screwdrivers that can simultaneously lock two screws, significantly enhancing efficiency. Designed for streamlined assembly lines, this automatic screw driving machine minimizes the need for manual labor by reducing worker involvement in loading and unloading, leading to improved productivity and cost savings.
Product Parameters
1.The automatic screw driving machine with intelligent detection function, it can detect leak lock, sliding teeth and so on.
2. Strong versatility. Replacing screw conveying module and suction nozzle can adapt to M0.8~4.0 screw locking
3. Configuration of two platforms and two batches can meet two different specifications of the screw at the same time
4.2 batches work at the same time, and the locking efficiency doubles
5. The equipment opens the function of “front-back pick-up”, and the workers in the process of connecting front and rear can finish the work of loading and unloading of products without having to be responsible for the loading and unloading of products by special persons, thus saving labor.
| Models | XY-SC9705 | XY-SC550S |
| Working area X*Y*Z*R(mm) | X1/X2:730*YI/Y2:900*Z1/Z2:100mm | X1/X2:400*Y1/Y2:700*Z1/Z2:80mm |
| Moving speed (mm/s) | X/Y≤500mm/s, Z≤300mm/s | |
| Drive mode | Stepping motor +straight guide/servo motor +ball screw(altermative) | |
| Location accuracy | ±0.01~0.03mm | |
| Control system | Moving controlling and teach pendant | |
| Screw transmission method | Suction mode/blow mode (alternative) | |
| Electric screwdrver | 2pc (altermative） | |
| Screw feeder | 2 sets | |
| Full-voltage | 220V 50HZ | |
| Operating temperature | 5-40℃ | |
| Operating humidity | 20-90% no condensation | |
| Air pressure | 0-0.8MPa | |
| Dimension W*D*H(mm） | 1235*1080*780 | 1070*700*800 |
| Weight | around 220kg | around 150kg |
